Congratulations on your investment! Whether you have purchased a commercial trackless train Ride for a shopping mall, a scenic resort, or an amusement park, knowing how to correctly set up and drive your vehicle is the key to operational safety and a high ROI.
Many operators make the mistake of treating an electric trackless train like a simple toy. In reality, it is a sophisticated piece of amusement equipment. In this guide, we use our classic Dudu train as a model to provide a step-by-step SOP for installation and operation, incorporating international safety standards and professional driving tips.
If you are still in the researching phase, this guide will show you exactly how user-friendly and well-engineered Carnee Rides amusement trains are compared to standard models on the market.
Before unboxing your ride on train, you must prepare your venue. Unlike traditional track trains, a trackless sightseeing train offers immense flexibility, but it still requires a “flight plan.”
( See more: What’s the difference between a trackless train and a track train? )
Surface Conditions: While our electric trackless trains use high-quality vacuum tires that can handle concrete, asphalt, and well-maintained gravel, ensure the surface is level. Avoid loose sand or deep mud, which can strain the electric motor.
Route Planning: Ensure your path is wide enough for the train’s turning radius. Pay special attention to “blind spots” in mall train environments where pedestrians might suddenly emerge.
Grade (Slope) Limits: Most electric sightseeing trains are designed for a maximum grade of 7%–10%. If your route includes hills, refer to our “Hill Driving” section below.
Once your train ride arrives and is carefully unloaded from its shipping container, follow these steps to connect your locomotive to the carriages.

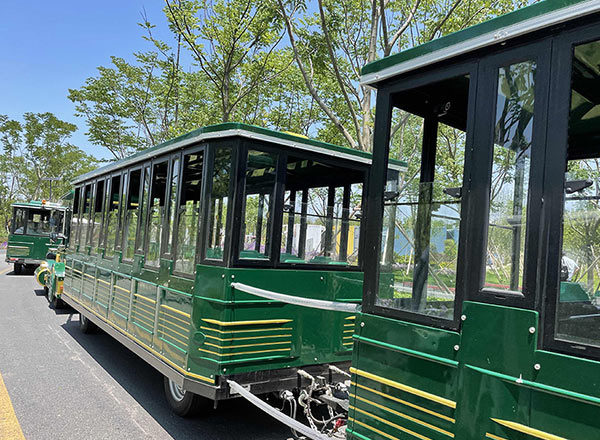

Align the first carriage behind the locomotive. Install the connection buckle into the hitch receiver.
Crucial Safety Tip: You must install the safety bolt through the buckle and lock it. This redundant safety feature prevents accidental decoupling during transit—a must-have for amusement park trains.
Our trains use industrial-grade aviation power cables to transmit power and braking signals from the locomotive to the carriages.
Connect the two ends of the aviation cable to the interface.
Rotate and tighten the locking ring until it is snug. A loose connection can cause the carriage lights to flicker or the electromagnetic brakes to fail.
Now that your tourist train ride is physically and electrically connected, it’s time to power up.
Locate the main power switch (usually a red rotary button or a key switch).
Turn on the main power.
Insert the key into the power lock and rotate it to the right.

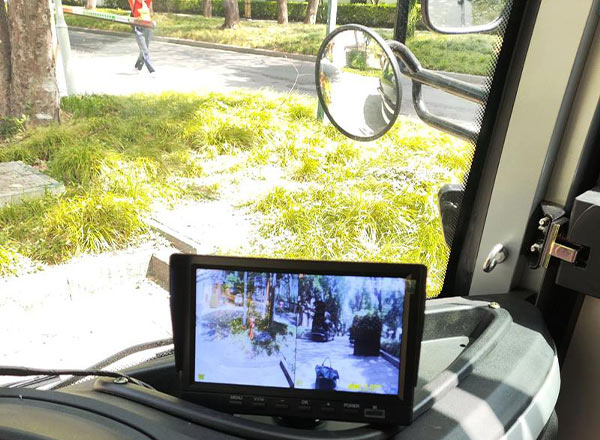

Check the instrument panel: Ensure the voltage meter is in the normal range (e.g., 48V or 72V) and no error codes are flashing.
Release the Handbrake: Ensure the train is on a level surface.
Select Gear: Turn the gear knob to D (Drive). (Note: Only reverse the train when carriages are empty and you have a spotter, as the trackless mall train has a complex pivot point).
Lights On: Turn on the headlights and carriage lights. Visual presence is vital for the safety of bystanders in kiddie train ride areas.
A premium sightseeing trackless tourist train is nothing without music.
Double-click the music player switch to activate the audio system.
Use the volume knob to adjust the sound to fit your environment (louder for outdoor festivals, moderate for indoor malls).
For that authentic steam locomotive feel, our trackless electric trains include a simulated smoke system.
Wait for Preheat: Turn on the smoke switch and wait 10 minutes after power-on. The system needs time to heat the atomization element before it can produce a consistent steam effect.
To be a Chinese top-tier trackless train manufacturer, we prioritize safety above all. Share these rules with your operators:
Uphill: Maintain a steady throttle. Do not stop mid-slope if possible.
Downhill: Never coast in neutral. Use “Point Braking” (intermittent light presses on the brake pedal) to manage speed. This prevents the brake pads from overheating and ensures the hydraulic disc brakes remain effective.
Always slow down before entering a turn. The carriages follow a slightly different path than the locomotive (off-tracking). In a shopping mall train ride, keep a wide berth around corners to protect store displays and pedestrians.
When the shift is over:
To ensure your electric trackless sightseeing train lasts for years, follow international safety standards (CE, ASTM, or EN13814):
Refer to our Ultimate Electric Trackless Train Ride Battery Charging Guide for details.
Installing and operating a battery powered trackless train is straightforward when you follow a professional SOP. By focusing on mechanical security, correct electrical sequence, and safe driving habits, you provide a magical experience for your guests and protect your business investment.
Looking for the best trackless train for sale? Carnee Rides provides one-stop solutions, from custom design to installation support. Contact our engineering team today for a free quote on our latest electric trackless trains!
Most jurisdictions do not require a standard driver’s license for indoor use, but we highly recommend a formal internal training program based on this guide.
Yes, provided the grass is flat and well-maintained. However, wet grass can reduce traction for electric riding trains.
Most of our locomotives can pull up to 3-4 carriages. Simply repeat the Safety Bolt and Aviation Cable steps for each additional unit in numerical order.
